Precast Box Culverts

Croom Concrete’s high-quality precast concrete box culvert range is the ideal solution for most forms of road underpass for a vast range of applications, from cattle transport to drainage. We are proud to offer an extensive range.

  • Box culvert Cork Co. Council
  • water-under-bridge
  • 2014-04-04-11-16-07
  • imag0035
  • 2014-05-01-12-51-59

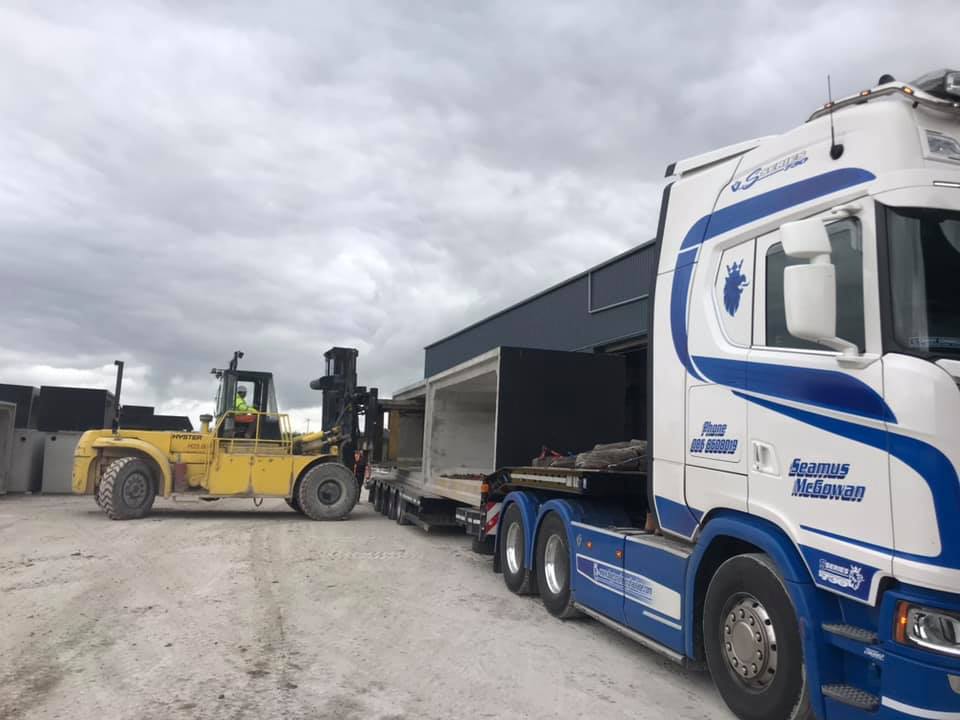

  • box-culvert-delivery
  • Box culverts
  • Croom Concrete Box culverts


Each concrete box culvert we offer is extremely quick and easy to install. This reduces the labour costs involved, and minimises disruption to road users.

Benefits of Concrete Box Culverts

  • They are extremely strong and durable
  • Specially designed to withstand the pressure from heavy loads passing above.
  • Concrete box culverts are not vulnerable to corrosion.
  • They have a long-term service life due to sturdy, high-quality construction.
  • Cost effective and reduces future disruption for maintenance works.

Complete Turnkey Service

To make sure things go as smoothly and easily as possible, Croom Concrete offer a comprehensive service. We can provide you extensive expert help, which includes managing or assisting with every aspect of your project. From obtaining planning permission, through design and installation right up until the road surface is replaced over the completed job, we are there to make sure everything goes to plan. (See more link to civil)

Box Culvert Range

Custom inverts and channels are also available on request, and standard models come with flat inverts. Currently our range encompasses widths of 1000-6000mm and heights of 1000-6000mm.

Each culvert we manufacture is individually designed by our experienced design team. All our products fulfil the requirements of BS5400 and BD 31/87 so you can be sure they are made to the best possible standards.

Culvert Size Table: Click to view fullscreen

Demand for box culverts is constantly growing. Not only are they the perfect solution for a huge variety of purposes, but people are constantly finding new ways that they can be used to improve the way things are done. Some of the many popular uses are;

They are the quickest, easiest, and most cost-effective means of installing a road crossing or underpass. These can create new crossings, or replace older crossings such as bridges. They are particularly popular for creating agricultural crossings such as cattle underpasses. This greatly improves safety for both livestock and motorists. They can be used for pedestrian or vehicle underpasses, including for larger agricultural vehicles.

Culverts are ideal for storing large volumes of storm water. A single box culvert or a span of several will provide an economical and effective storage medium.

These allow developers to achieve maximum benefit from the land. We have designed culverts to pass under structures, so they do not interfere with the use of space for buildings.

Where it is necessary to provide a high capacity for heavy flow, culverts excel. Multiple lines can be easily laid down side-by-side, providing the capability to deal with any volume of fluid.

Unlike concrete pipes, a box culvert can be designed for as little as 200mm cover, while still providing excellent drainage and a high level of durability. This makes culverts far better where finished levels have tight constraints.

Culverts are often used for underground service tunnels, escape tunnels and pedestrian subways. They are the fastest and simplest way to create a safe, strong underground passage.

Culverts can also be used vertically to create access shafts. These are able to resist very high pressures, and are as strong and durable as any other culvert construction.

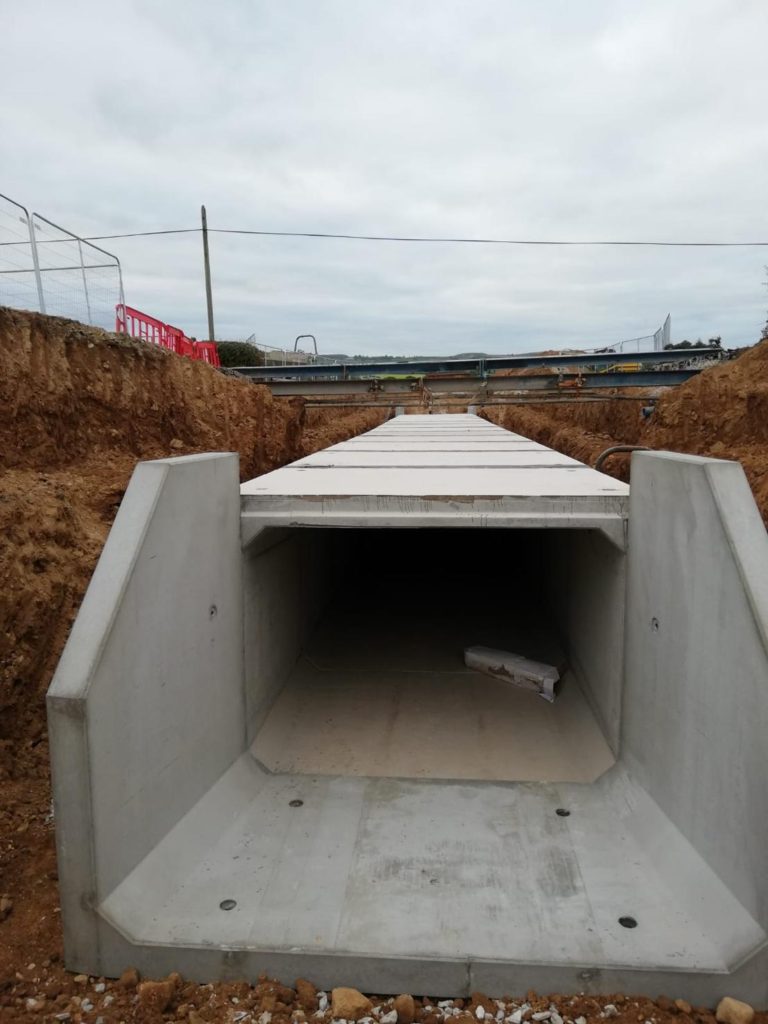

Wing Walls

We are also able to provide wing walls. These are sloped retaining walls which allow the surrounding soil to securely be kept at its full height. Like the culverts themselves, these are quick and easy to install. They are often used to form the entrance to culvert structures. They can be finished with your choice of our standard claddings.

Head Walls

For a complete solution we would recommend finishing your culvert with a precast headwall.  Headwalls allow for a faster reinstatement of the road as they can be installed and backfilled on the same day. They are also a better solution to retain soil and minimise erosion at the point of discharge.

At Croom Concrete, we pride ourselves on providing excellent service, extensive support, and extremely high-quality products. If you think culverts will be a good way to achieve the goals of your products, get in touch to discuss your bespoke solution.



Click here to view our Box Culvert information document for the civil sector

Precast Box Culverts

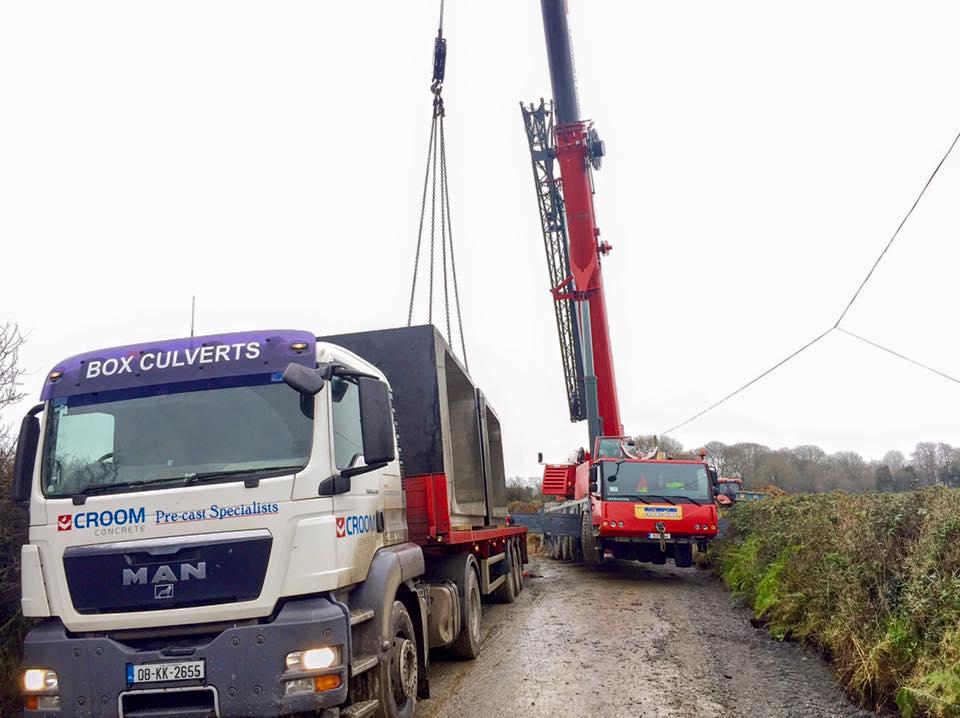

Croom Precast box culverts delivered to Dorset this week

Croom Precast box culverts delivered to Dorset this week for upcoming bridge renewal works.

Croom 3m Portal Box Culverts Installed in Mayo

Croom 3m portal box culverts being installed in Mayo this morning for a bridge restoration project.

5m box’s Culverts Despatched for a Bridging Project in Donegal

Croom Concrete 5m box’s culverts despatched today for a bridging project in Donegal.

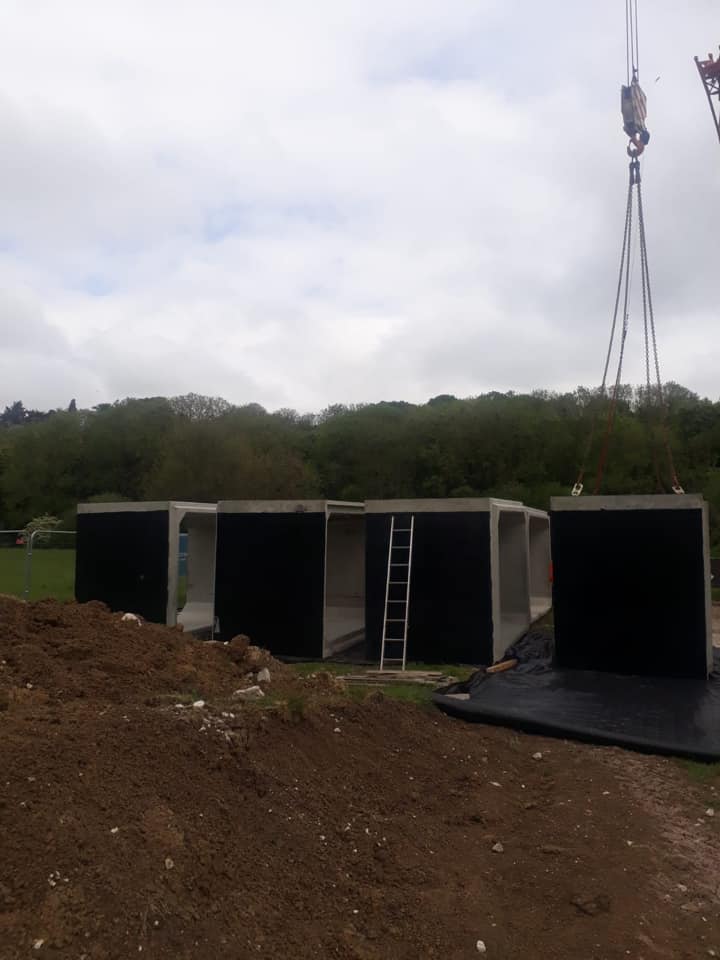

Precast box culverts installed this week for NRS Group

Croom Concrete precast box culverts installed this week for NRS Group for their ongoing works on the Great Southern Greenway in Newcastlewest, Co.Limerick.

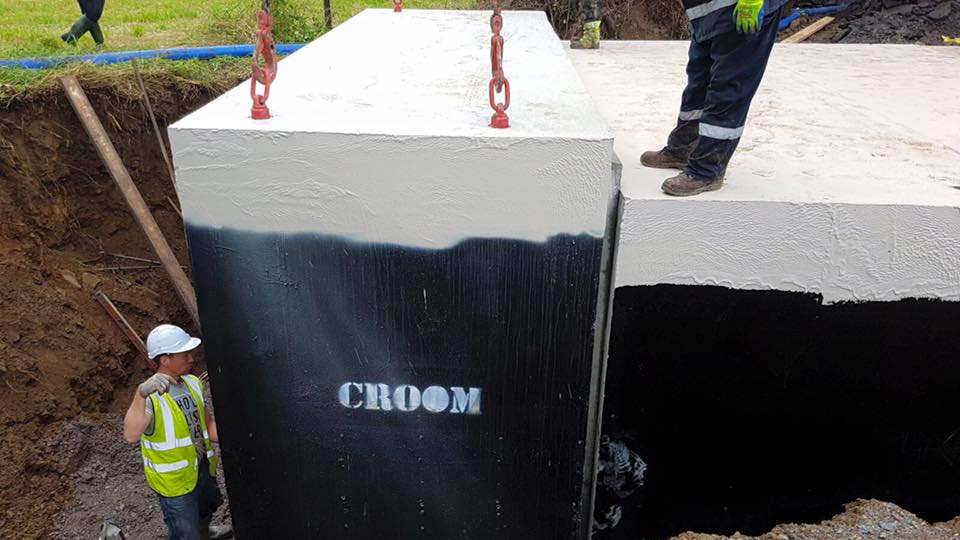

3.5m Precast Box Culverts Installed for Another New Cattle Underpass

3.5m precast Box culverts being installed for another new cattle underpass for main contractor Mulcahy Steel in Watergrasshill, Co. Cork.

Fitting box culverts in Arklow

Fitting box culverts in Arklow this week.

Box Culverts

At Croom we offer an extensive range of high quality precast concrete box culverts, and the applications for which they are being used is growing as word of their simplicity, ease and speed of installation and cost-effectiveness spreads.

Croom Concrete Box Culverts

Croom Concrete Box culverts supplied to P&D Lydon for on going bridge replacement works for Galway County Council.

2.5m Box culverts

Croom Concrete 2.5m box culverts supplied today to Roscommon County Council for only going bridge replacement works.

Precast Box Culverts Supplied to Sorensen Civil Engineering

Precast box culverts supplied to Sorensen Civil Engineering for their on going project on the N70 in Co.Kerry

Our New Gantry

Our new gantry making light work of moving one of our box culvert

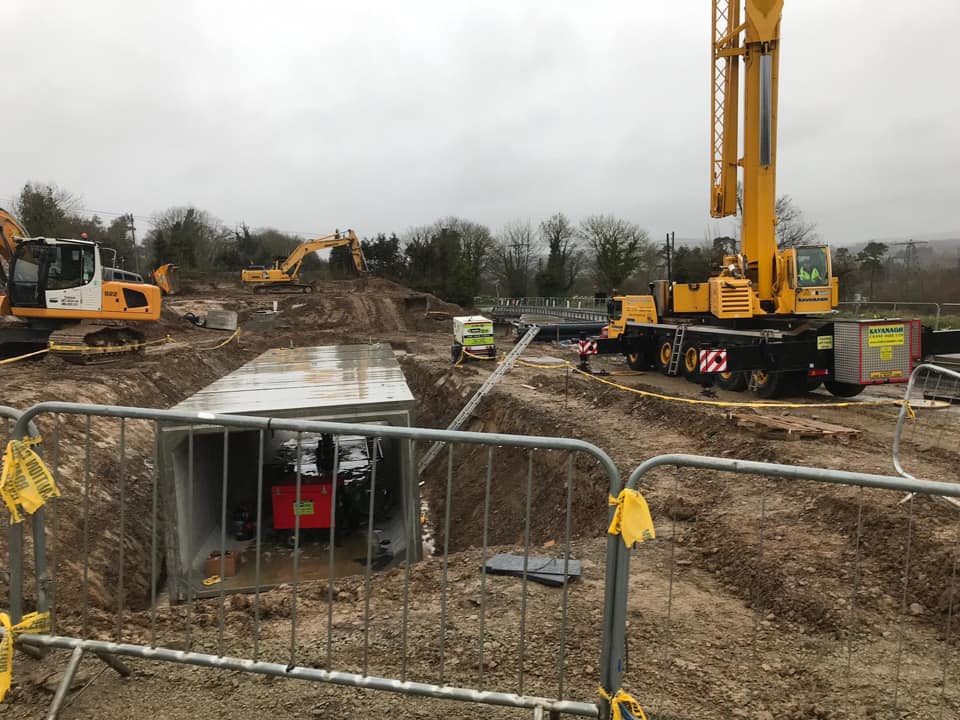

New National Children’s Hospital in Dublin

Box culverts delivered today to BAM Building on site @ the New National Children’s Hospital in Dublin

Croom 5m Box Culverts installed for Donegal Coco in Inishowen

Croom 5m Box Culverts installed for Donegal Coco in Inishowen as part of the emergency bridge repair works. Pictures courtesy of Donegal Climbing.

Croom 9m wide UAN type culverts for OPW in Craughwell flood relief

Croom 9m wide UAN type culverts for OPW in Craughwell flood relief scheme Galway.

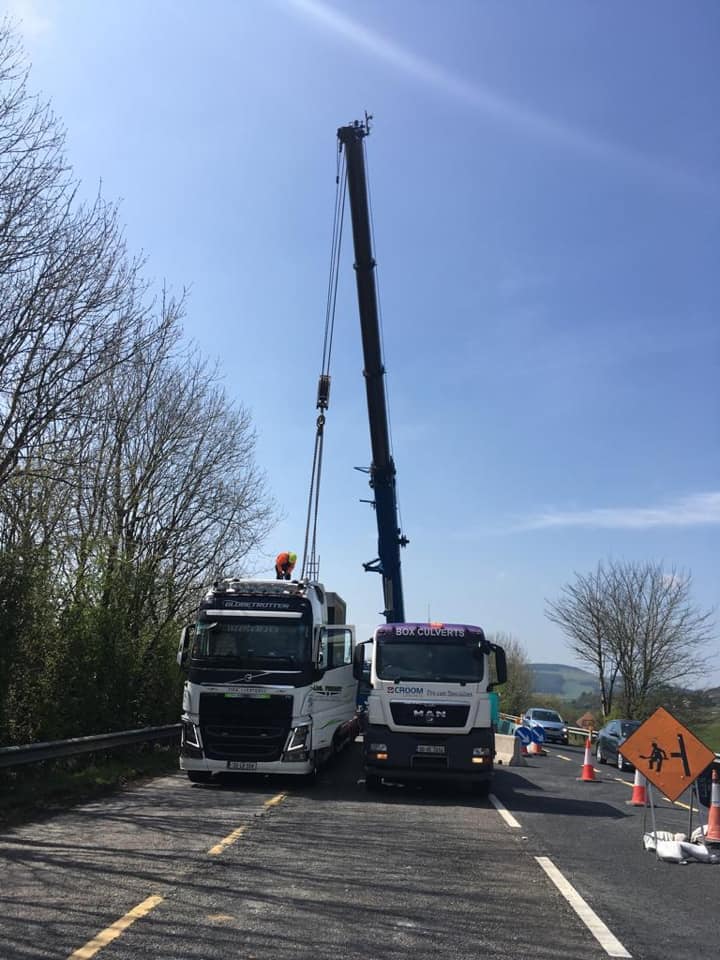

4.8m precast box culverts for bridge replacement

4.8m precast box culverts for bridge replacement works being installed in Cork.

Croom’s precast box culverts been utilised in Claregalways flood relief

Croom’s precast box culverts been utilised in Claregalways flood relief project for the Office of Public Works.

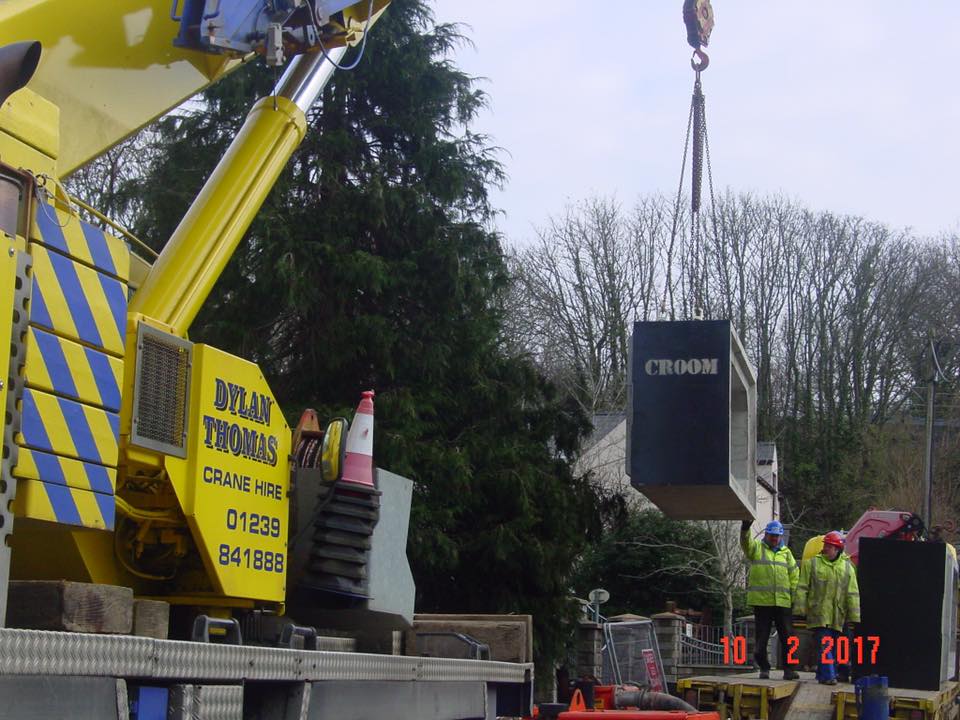

Croom Box culverts being installed in Wales

Croom Box culverts being installed in Wales this week for Pembrokeshire Council

Box culverts for a new cattle underpass being installed in Kilmeaden, Co. Waterford

Box culverts for a new cattle underpass being installed in Kilmeaden, Co.Waterford with Waterford Crane Hire.

Two New Underpasses Waterford County Council

In October 2015 Croom concrete were contracted by Waterford county council to install a two new underpasses, on the new greenway been constructed on the old railway line between Dungarvin and tramore. This is part of a 10 million investment…

New Bridge Extension For Donegal County Council

Croom concrete were contracted by donegal county council in early 2015 to provide a precast solution to a damage arched bridge in castlefinn, county donegal. The scope of crooms worked involved the supply of 6 no. 4.8m wide x 2.1m…

Precast Units for Cattle Underpass – James Brothers Enterprise Ltd

Job was in May 2015 Croom Supplied the following precast items:

Croom Supplies New Pedestrian Tunnel for Munster Joinery (Ballydesmond Co. Cork)

Croom Concrete recently won the contract to supply precast box culverts to Munster Joinery’s new pedestrian tunnel in Ballydesmond, County Cork.

Croom Supply Bridge Extension To P&D Lydon Construction

Croom Concrete has supplied box culverts to P&D Lydon Construction for use in the manufacture of a bridge extension in County Limerick.

Croom Install Box Culverts for Mayo County Council

Croom Concrete has installed 12m of precast box culverts to create a river crossing in Mayo.

Croom Supply Box Culverts To OPW Flood Relief System, Clontarf, Dublin, Ireland

Croom Concrete has supplied over 150 linear metres of box culverts to the flood relief system in Clontarf Co. Dublin.

Parallel Box Culverts Provide Solution

Two 4.2 metre box culverts running parallel to each other make 8.4 meter bridge crossing possible at Red Strand, Clonakilty, County Cork

Croom Concrete Box Culverts Form New Bridges in West Cork

With the recent bad weather which has occur over the past four months here in Ireland,two bridges were badly damaged in Clonakilty,West Cork, Southern Ireland. After an extensive site investigation carried out by RPS Engineers, the decision was taken by the local authority for…

Croom Concrete Featured in the American Magazine, “Precast Solutions”

In the Winter 2014 edition of the American magazine, “Precast Solutions” an article was published about Precast Concrete Culverts. The article, entitled “More than Meets the Eye” talks about Croom Concrete’s cattle underpasses and the advantages of Precast Concrete Solutions….

Installing a box culvert over two ground levels

Michael Walsh in Bartlemy, Fermoy, Co. Cork has land separated by a busy road. Michael calculated that he loses 1 hours work every day because of trying to cross the road that lies between his fields. Michael decided to solve…

Cattle Underpass ends a farmers daily nightmare

18m Cattle underpass designed, manufactured and installed by Croom Concrete in March 2012 for John Maloney in Bruff Co Limerick has land separated by a busy road, the R512. The R512 road is a regional road in Ireland which runs…

Croom team work through the night installing box culvert

This article from the Farmers Journal features Croom Concrete installing a box culvert for a cattle underpass in 48 hours. What’s the quickest you could dig up a public road, build a cattle underpass and then re-surface and re-open the…

Underpass high enough for a tractor

Most underpasses are high enough for cows and a farm jeep to pass through. This article from the Farmers Journal features a road underpass which is high enough for a mid-size tractor to drive through.

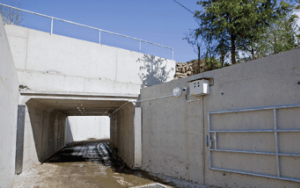

Allen family safer thanks to new Underpass

Allen family is safer and the yard is cleaner thanks to the new underpass Seventeen years ago the Allen family of Newcestown investigated building an underpass for their dairy herd but the plan was dropped as it was considered too…

Road underpass was turnkey job

In this article from the Farmers Journal, Paul Mooney speaks to Joe O’Donoghue of Michelstown, who decided to fully contract out the construction of a road underpass on his farm. When it comes to a farm building project some farmers…

Concrete Box Culverts for Fermoy Bridge replacement

Croom Concrete were recently selected by Cork County Council for the supply of precast concrete box culverts for a Bridge replacement in the Fermoy/Glenvile areas.

Cattle underpass in Mallow. Co Cork

Croom Concrete successfully installed a cattle underpass for Gerard Cronin Mallow, on the N73. Box culvert units supplied were 3 meters in width by 2.1m in height. The tunnel length was 10m.
