Cattle Underpasses

Croom Concrete’s high-quality precast concrete box culvert range is the ideal solution for most forms of road underpass for a vast range of applications, from cattle transport to drainage. We are proud to offer an extensive range. Each concrete box culvert we offer is extremely quick and easy to install. This reduces the labour costs involved, and minimises disruption to road users.

  • underpass-inside
  • 2013-07-10-16-36-31
  • underpass-photo
  • wing-walls
  • box-culvert-manufacture

Benefits of Concrete Box Culverts

  • They are extremely strong and durable
  • Specially designed to withstand the pressure from heavy loads passing above.
  • Concrete box culverts are not vulnerable to corrosion.
  • They have a long-term service life due to sturdy, high-quality construction.
  • Cost effective and reduces future disruption for maintenance works.

Complete Turnkey Service

To make sure things go as smoothly and easily as possible, Croom Concrete offer a comprehensive service. We can provide you extensive expert help, which includes managing or assisting with every aspect of your project. From obtaining planning permission, through design and installation right up until the road surface is replaced over the completed job, we are there to make sure everything goes to plan. (See more link to civil)

Box Culvert Range

Custom inverts and channels are also available on request, and standard models come with flat inverts. Currently our range encompasses widths of 1000-6000mm and heights of 1000-6000mm.

Each culvert we manufacture is individually designed by our experienced design team. All our products fulfil the requirements of BS5400 and BD 31/87 so you can be sure they are made to the best possible standards.

Culvert Size Table: Click to view fullscreen

Demand for box culverts is constantly growing. Not only are they the perfect solution for a huge variety of purposes, but people are constantly finding new ways that they can be used to improve the way things are done. Some of the many popular uses are;

They are the quickest, easiest, and most cost-effective means of installing a road crossing or underpass. These can create new crossings, or replace older crossings such as bridges. They are particularly popular for creating agricultural crossings such as cattle underpasses. This greatly improves safety for both livestock and motorists. They can be used for pedestrian or vehicle underpasses, including for larger agricultural vehicles.

Culverts are ideal for storing large volumes of storm water. A single box culvert or a span of several will provide an economical and effective storage medium.

These allow developers to achieve maximum benefit from the land. We have designed culverts to pass under structures, so they do not interfere with the use of space for buildings.

Where it is necessary to provide a high capacity for heavy flow, culverts excel. Multiple lines can be easily laid down side-by-side, providing the capability to deal with any volume of fluid.

Unlike concrete pipes, a box culvert can be designed for as little as 200mm cover, while still providing excellent drainage and a high level of durability. This makes culverts far better where finished levels have tight constraints.

Culverts are often used for underground service tunnels, escape tunnels and pedestrian subways. They are the fastest and simplest way to create a safe, strong underground passage.

Culverts can also be used vertically to create access shafts. These are able to resist very high pressures, and are as strong and durable as any other culvert construction.

Wing Walls

We are also able to provide wing walls. These are sloped retaining walls which allow the surrounding soil to securely be kept at its full height. Like the culverts themselves, these are quick and easy to install. They are often used to form the entrance to culvert structures. They can be finished with your choice of our standard claddings.

Head Walls

For a complete solution we would recommend finishing your culvert with a precast headwall.  Headwalls allow for a faster reinstatement of the road as they can be installed and backfilled on the same day. They are also a better solution to retain soil and minimise erosion at the point of discharge.

At Croom Concrete, we pride ourselves on providing excellent service, extensive support, and extremely high-quality products. If you think culverts will be a good way to achieve the goals of your products, get in touch to discuss your bespoke solution.

Precast Cattle Underpasses News

New Cattle Underpasses Installed This Past Week On The N72 In Co.cork

Full TII/NRA specification. Complete project management by Croom from start to finish

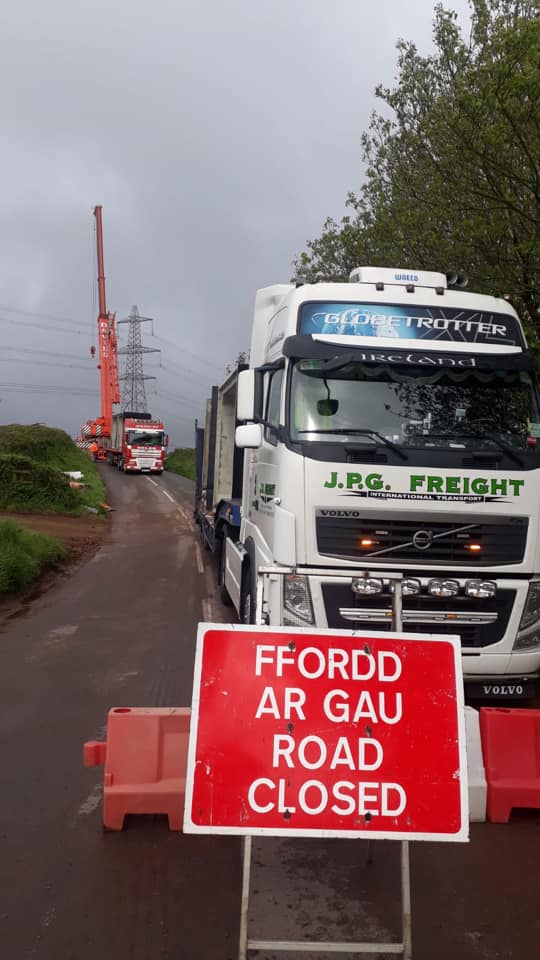

New 3.6m Croom Concrete cattle underpass being installed in Pembrokeshire

New 3.6m Croom Concrete cattle underpass being installed this morning in Pembrokeshire.

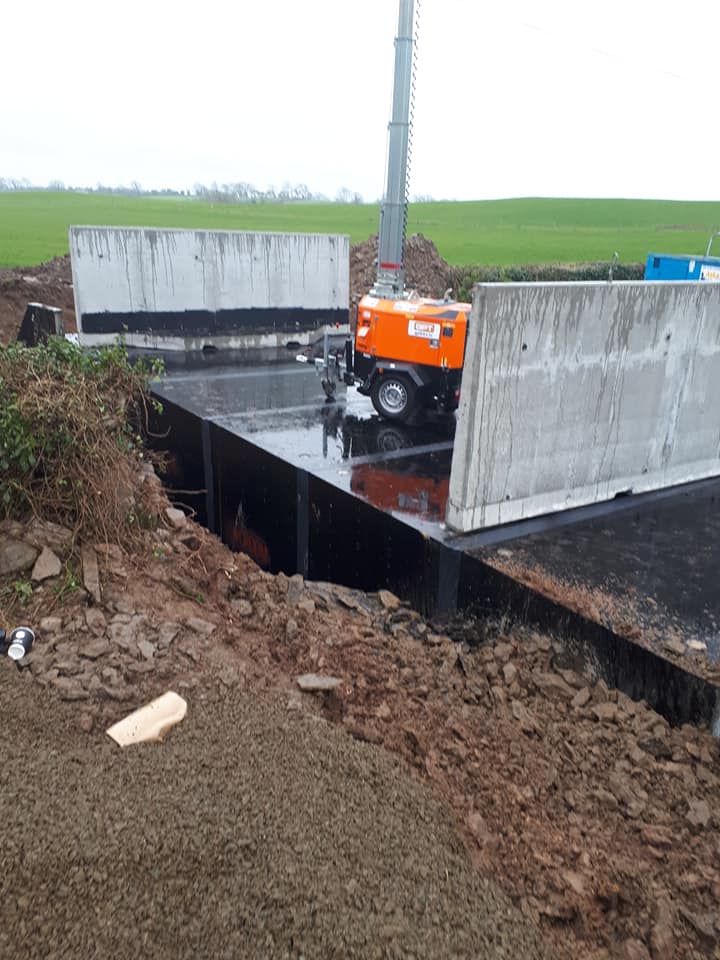

Another 2 x 4.5m Cattle underpass nearing completion In Tipperary

Another 2 x 4.5m Cattle underpass nearing completion In Tipperary this week.  Croom concrete offering the complete precast solution

Installing a 4.5m underpass in the midlands

Croom civil team onsite again this week in the midlands installing a 4.5m underpass. Complete project management

Croom Concretes underpass team is ready to roll for Monday

Croom Concretes underpass team is ready to roll for Monday.

New Cattle Underpass

Glad to be given the opportunity to install the new cattle underpass for such a progressive agricultural college In our local county.

Underpass Installed in Mitchelstown, Co.Cork

Another Croom Concrete underpass installed this week in Mitchelstown, Co.Cork. Fully designed project undertaken by Croom civil team.

Day 4 of 4 and the underpass is in place

Salesian Agricultural College Pallaskenry Day 4 of 4 and the underpass is in place. Thanks to our neighbours for their understanding with the road closure over the last 4 days.

3m Underpass by Crooms Civil Team in Broadford, Limerick

Another fully installed 3m underpass by Crooms civil team in Broadford, Limerick. Complete projects undertaken nationwide.

3m Cattle Underpass Installed in South Kerry

Another Croom 3m cattle underpass installed in South Kerry. Contact our sales office for any underpass inquiries. Full turn key service.

3m Cattle Underpass Installed in Ogonnelloe

Another 3m cattle underpass successfully installed in Ogonnelloe, Co.Clare this week. Complete job undertaken by Croom’s in house civil team.

4m cattle underpass installed in Dungarvan

A tidy looking 4m cattle underpass installed in Dungarvan, Co.Waterford

Cattle Underpass

A Laois farmer installed an underpass this spring and is delighted with the outcome,writes Peter Varley Underpass takes the stress out of milking

Underpass completed today by Croom Civils team in Ballyhooley, Co. Cork.

Tidy underpass completed today by Croom Civils team in Ballyhooley, Co.Cork. Complete project undertaken.

Cattle underpass completed by Croom Civils team in Emo, Co. Laois.

Cattle underpass completed by Croom Civils team in Emo, Co.Laois.

Croom Civils team installing a new 4m cattle underpass in Granagh, Co.Limerick

Croom Civils team installing a new 4m cattle underpass in Granagh, Co.Limerick.

Another Croom 4m underpass successfully installed in Shanagolden, Co.Limerick.

Another Croom 4m underpass successfully installed in Shanagolden, Co.Limerick. Full project undertaken and managed.

2 cattle underpasses installed for farmer in Broadford, Co.Limerick

2 cattle underpasses installed for farmer in Broadford, Co.Limerick. Full design, Civils and installation works carried out in house by Croom’s experienced underpass division.

Rathdowney, Co. Laois. Another tasty looking 3.6m wide underpass finished.

Rathdowney, Co.Laois. Another tasty looking 3.6m wide underpass finished.

New 4m Cattle underpass installed in Rathcormac, Co. Cork

New 4m Cattle underpass installed in Rathcormac, Co.Cork. Full project undertaken by Croom

New cattle underpass installed in Rathdowney, Co. Laois

New cattle underpass installed in Rathdowney, Co.Laois this week. Full job undertaken by Crooms Civil division.

Underpasses on Waterford Greenway

Underpasses on Waterford Greenway coming along nicely

Two New Underpasses Waterford County Council

In October 2015 Croom concrete were contracted by Waterford county council to install a two new underpasses, on the new greenway been constructed on the old railway line between Dungarvin and tramore. This is part of a 10 million investment…
